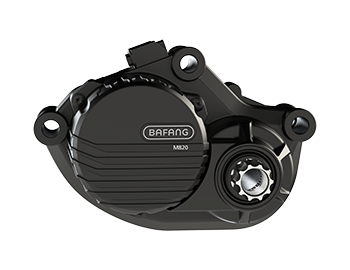

Are you looking for a light motor for your eMTB? Our M820 is the answer.
With only 2.3kg, it convinces in all points with 250W rated power and strong 80Nm (max torque) for a maximum extended cadence support of 120 rpm. Thanks to its perfectly tuned torque sensor, it can control the exact power according to the pedaling force.
Dimensions / Size
167mm
117mm
147.6mm
Specifications
Core Data
| Position | Mid Motor |
| Wheel Diameter (Inch) | 27.5 – 29 |
| Nominal Voltage (Vdc) | 36 |
| Rated Power (W) | 250 |
| Max. Possible Power(W) | 530 |
| Max. Possible Current (A) | 17 |
| Max. Possible Torque (Nm) | 80 |
| Max. Possible Support Ratio | 500% |
| Speed Limit (km/h) | 25 |
| Pedal Sensor | Cadence & Torque |
| Shaft Standard | ISIS |
| Color | Black |
| Weight (kg) | 2.3 |
Function
| Auto-adaptive mode (Sport+) | – |
| Auto-hold mode | Optional |
| Coaster Brake | – |
| E-Brake | Optional |
| Throttle | N/A |
| Light Drive Capacity (Vdc/W) | 12 / 12 (max) |
| Chain Guide | – |
Tests & Certifications
| IP | IP X6 |
| Certifications | CE |
